5 HP outboard motor with tiller, 20-inch shaft

Description

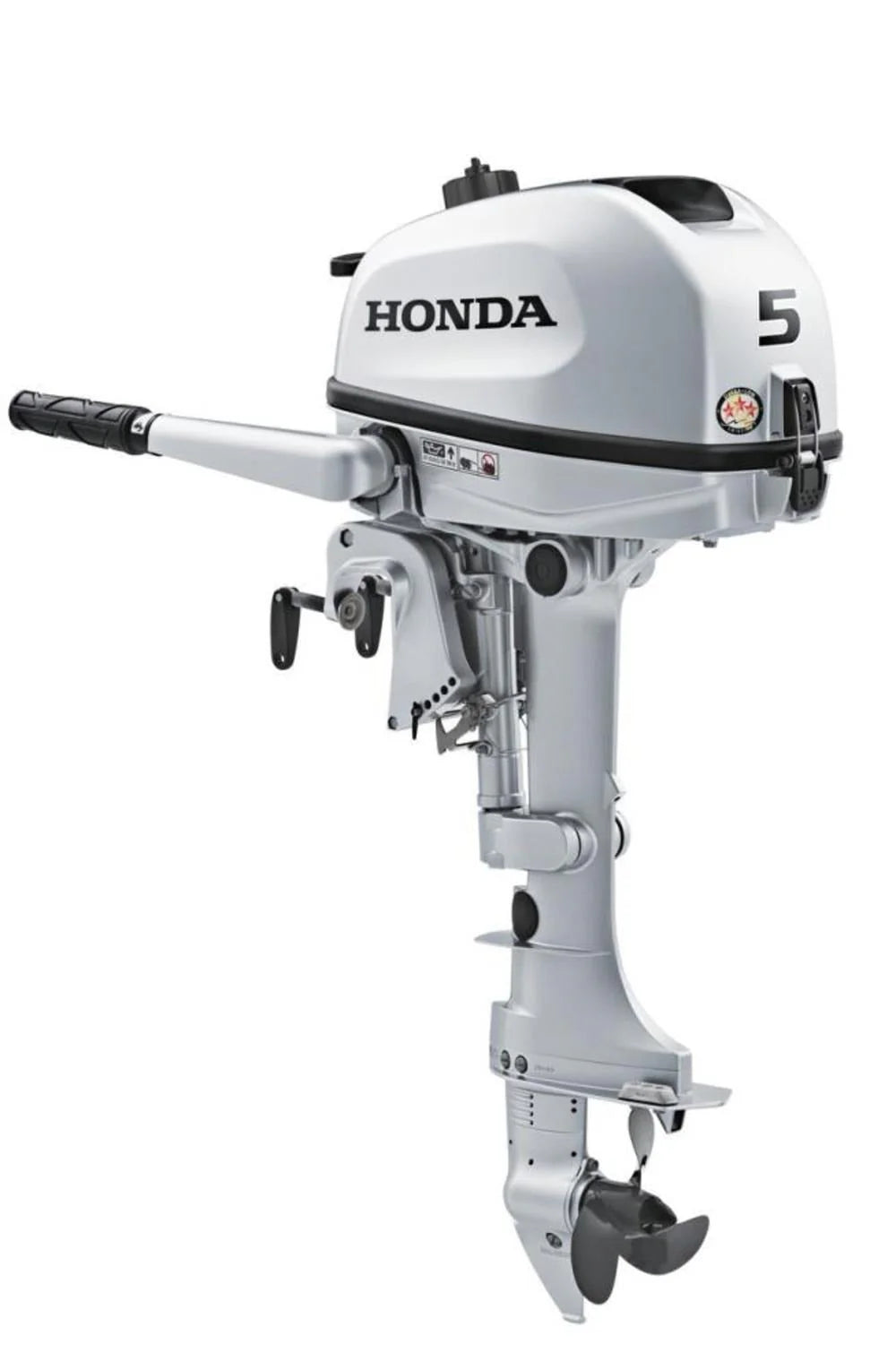

Honda 5 HP Tiller Outboard Motor, 20-inch Shaft

Everything you could want in a portable outboard motor: easy starting, lightweight, fuel-efficient, and quiet, low-vibration operation. It's no wonder the all-new BF4 and the redesigned BF5 are leaders in their class. Honda has thought of everything. From convenient carrying handles and a one-button stop switch to the longest run time in its class, this motor redefines the term "portable." Ideal for small dinghies, canoes, jon boats, and inflatables, the BF4 and BF5 are easy to transport and ready for carefree fun on the water.

Features

Reliable and efficient 4-stroke engine

Lightweight and compact

Weighing only 27 kg, these motors are easy to transport.

Easy starting and stopping

Large internal fuel tank for superior run times

Quiet and smooth running – low vibration for a comfortable ride

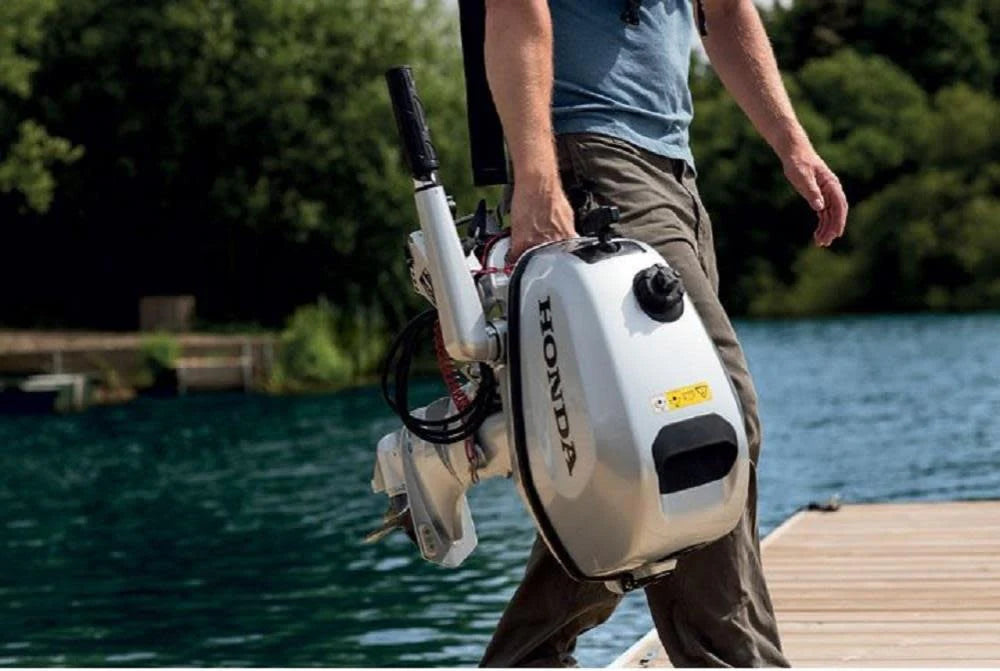

Easy to transport and install

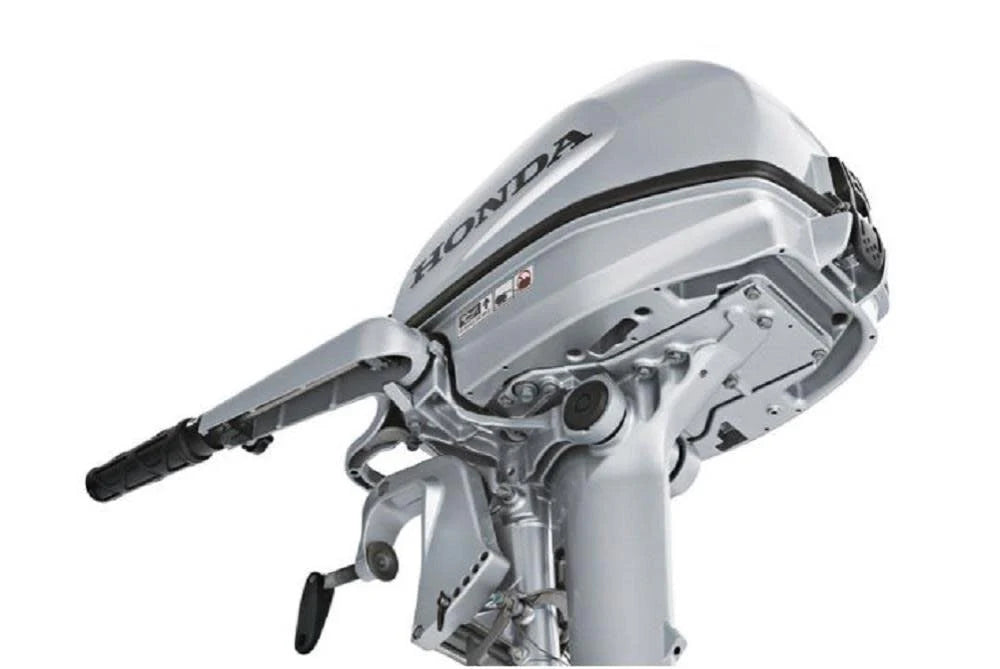

Convenient, foldable tiller

Quietest engine in its class

Twist throttle grip – more comfortable to use

5-year warranty – complete peace of mind

A low oil warning combined with a speed reduction protects the engine from serious damage in case of low oil pressure.

4-piece front corrosion protection system

An innovative shallow water function allows the engine to be raised for easy maneuvering in shallow water.

The BF4 and BF5 models feature forward, neutral, and reverse gears.

An automotive-grade, crankshaft-driven trochoidal oil pump ensures engine longevity. Components

Extremely low 3-star CARB emissions

Enables operation in shallow waters and significantly reduces the risk of engine damage

20-inch shaft model

3-blade aluminum propeller
Specifications
Brand Name: Acme Tools
HONDA MARINE
Part Number: Acme Tools
BF5DHLHNA
Weight (assembled)
60 lbs
Bore Diameter
2.4 inches
California Proposition 65 warning required
Yes
Fuel Capacity
0.4 gallons
CARB compliant
Yes
Color
Silver
Color/Finish
Silver, Gray, and Black
Country of Origin
Japan
Number of Cylinders
1
Dry Weight
60 lbs
Displacement
7.8 in³
Engine Oil Capacity
0.48 qt
Starting Method
Pick-start
Fuel Tank Capacity
0.4 gallons Gear Ratio
2.08:1
GTIN (Global Trade Item Number)
00786102006170
Power (HP)
5
Mounting Hardware Included
Yes
Assembly Instructions Included
Yes
Internal Supplier Part Number
BFDHLHNA
IPC (Internet Product Code)
A3A355CD4AB
Manufacturer's Warranty
5-year limited manufacturer's warranty. See owner's manual for details.
Model Year
2018
Overall Height (in)
45.7
Overall Length (in)
20.6
Overall Width (in)
13.7
Package Weight
75
Package Weight (lbs)
75
Recommended Use
Recommended Maximum Boat Length (ft) = 1
Shaft Length (in)
20
Stroke Length (in)
1.8
UPC
786102006170
